Diamond Ground Piranha™ III Tungsten Grinder DGP-PG3-A-V2

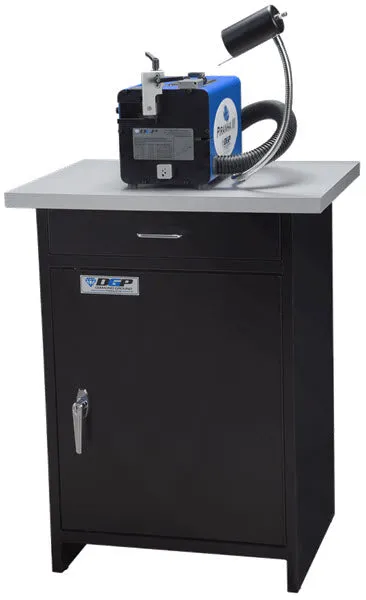

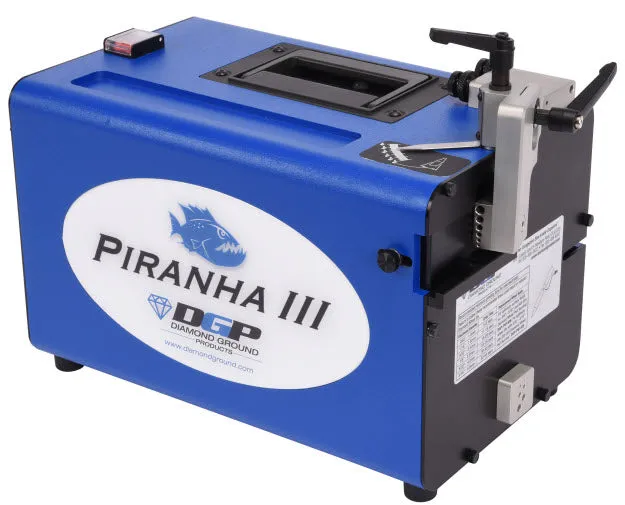

Genuine Diamond Ground Piranha™ III tungsten grinder with vacuum system features a universal collet that accepts .040 through 3/16 diameter tungsten welding electrode. The fully foam insulated vacuum cabinet captures harmful tungsten dust and stores it until ready for safe disposal. The vacuum cabinet comes complete with a flexible spotlight that enhances safety and visibility. The Pirhana III's on/off switch with LED light gives clear visual indication that the unit is turned on. The grinder's chassis weighs only 38 lbs. and features a recessed handle, integrated receptacle for holding tungsten electrodes, and blue powder coat finish. The total system with vacuum cabinet weighs 165 lbs.

Why use a dedicated tungsten grinder

Safety: Enclosed grinding area captures Tungsten dust for easy disposal.

Weld Quality: 20 Ra surface finish improves Tungsten life, arc starting, arc stability and produces consistent weld penetration.

Productivity: Longitudinally diamond grind your Tungsten electrode in less than 30 seconds correctly and consistently.

Value: The PIRANHA III diamond grinds, flats and notches your Tungsten economically.

For .040" through 3/16" diameter tungsten electrode.

Features

Vacuum capture of harmful tungsten dust

Vacuum unit atutomatically powers up when grinder is turned on.
Vacuum unit uses standard Shop Vac® filters

Sliding dust shield for 100% dust containment

Integrated work light

Easy set-up, optimal consistency and near-perfect repeatability.

Compact, durable and solid design with no vibration.

Longitudinal 20 RA grinding for maximum arc starting, arc stability, electrode life & weld penetration.

Universal collet arm for 6 electrode sizes - 040" (1.0mm), 1/16" (1.6mm), 3/32" (2.4mm),1/8" (3.2mm) ,5/32" (4.0mm) & 3/16" (4.8mm) - with no equipment changes.

Included angle scale for angles from 10 degrees - 60 degrees

Precision tip flat gauge & depth adjustment stop ensures exact tungsten points every time - enabling consistent, repeatable arc performance and welding output.

Containment baffle to keep dust inside the grinder housing, for safety and easy disposal.

Tip flat block for square end grinding and removing bad tips.

Electrode notching station for simple cut-off.

Integrated receptacle area for ease of handling electrodes

Recessed handle for better form & function

On/off switch with LED light for improved display of unit operation

Signature blue powdercoat

Detailed manual for valuable engineering data and welding recommendations.

Specs

Range of Included Angle: 10 degrees - 60 degrees

Electrode Diameters: 040"(1.0mm),1/16" (1.6mm), 3/32" (2.4mm),1/8" (3.2mm) , 5/32" (4.0mm) & 3/16" (4.8mm)

Minimum Electrode Length: 1.75" ( 44.5mm)

Voltage: 100/120 VAC, 50/60Hz

Power Consumption: 500 Watts

Motor: 1/10 hp, 3000rpm, 2.5 amps

Depth: 36"

Width: 36" (177mm)

Height: 52" (240mm)

Weight: 165 lbs
